Dust Collector

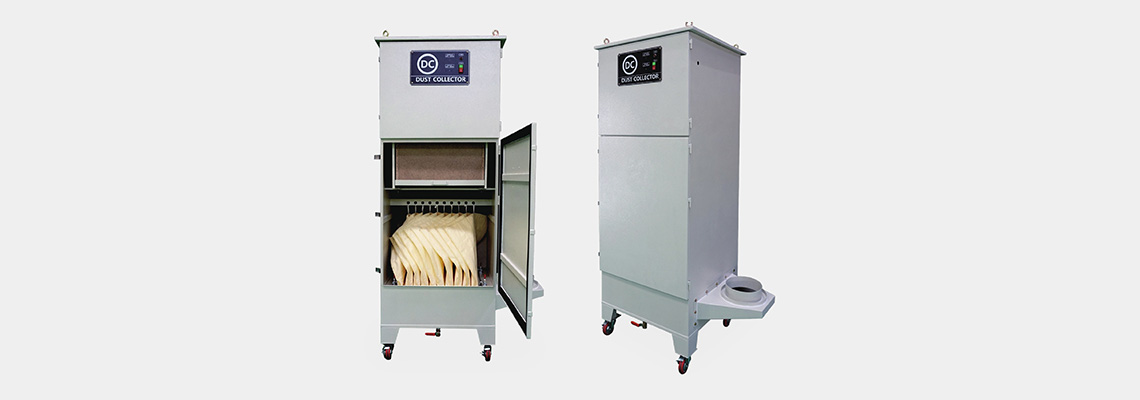

Medium and large oil mist dust Collector (AOM-SERIES)
This product is suitable for removing water-soluble and non-waterable oil mist generated during high-speed processing such as machining center, CNC lathe, automatic lathe, press and centerpiece grinding, and air-discharge.

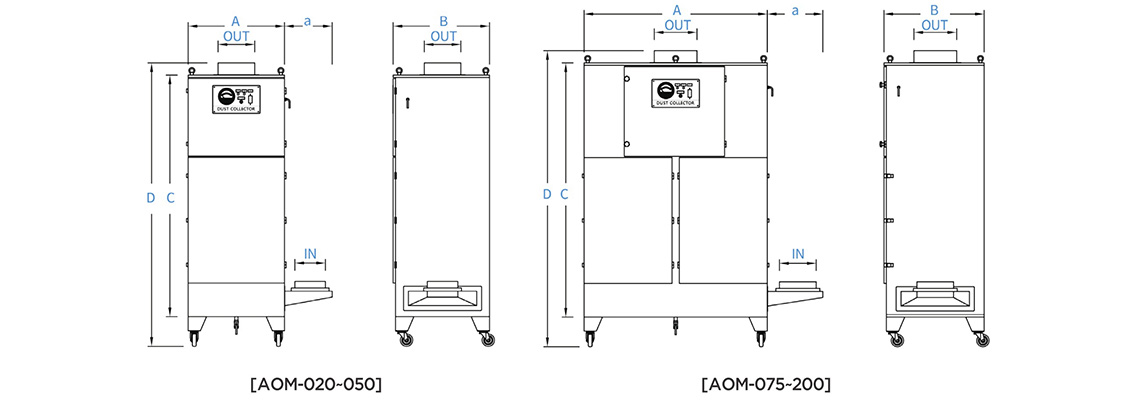

| Model name | Wind volume (m3/min) |
Static pressure (mmAq) |
Output (Kw) |
Size | Weight (Kg) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| A(+a) | B | C | D | IN(Ø) | OUT(Ø) | |||||
| AOM-020 | 25 | 230 | 1.5 | 790(+290) | 810 | 1780 | 2103 | 150 | 200 | 216 |
| AOM-030 | 40 | 230 | 2.2 | 790(+340) | 810 | 1880 | 2223 | 200 | 250 | 230 |
| AOM-050 | 60 | 230 | 3.7 | 790(+390) | 790 | 1980 | 2223 | 250 | 300 | 268 |
| AOM-075 | 80 | 250 | 5.5 | 1500(+455) | 820 | 2080 | 2423 | 300 | 350 | 480 |
| AOM-100 | 100 | 250 | 7.5 | 1560(+480) | 820 | 2080 | 2423 | 350 | 400 | 603 |
| AOM-150 | 100 | 250 | 5.5 x 2EA | 1640(+600) | 1440 | 2210 | 2553 | 400 | 450 | 860 |
| AOM-200 | 200 | 250 | 7.5 x 2EA | 1640(+625) | 1440 | 2210 | 2553 | 450 | 500 | 945 |
We can manufacture various sizes with stock sizes (Inquiry: 82-31-494-8013)

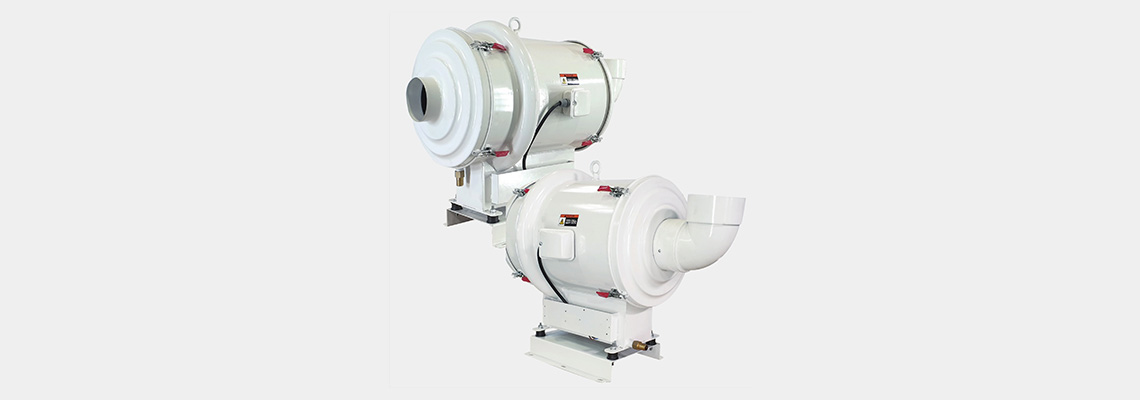

Small oil mist dust collector
This product is suitable if the amount of water-soluble and non-soluble mist generated during machining of machine parts is small or individual collection facilities are required.
